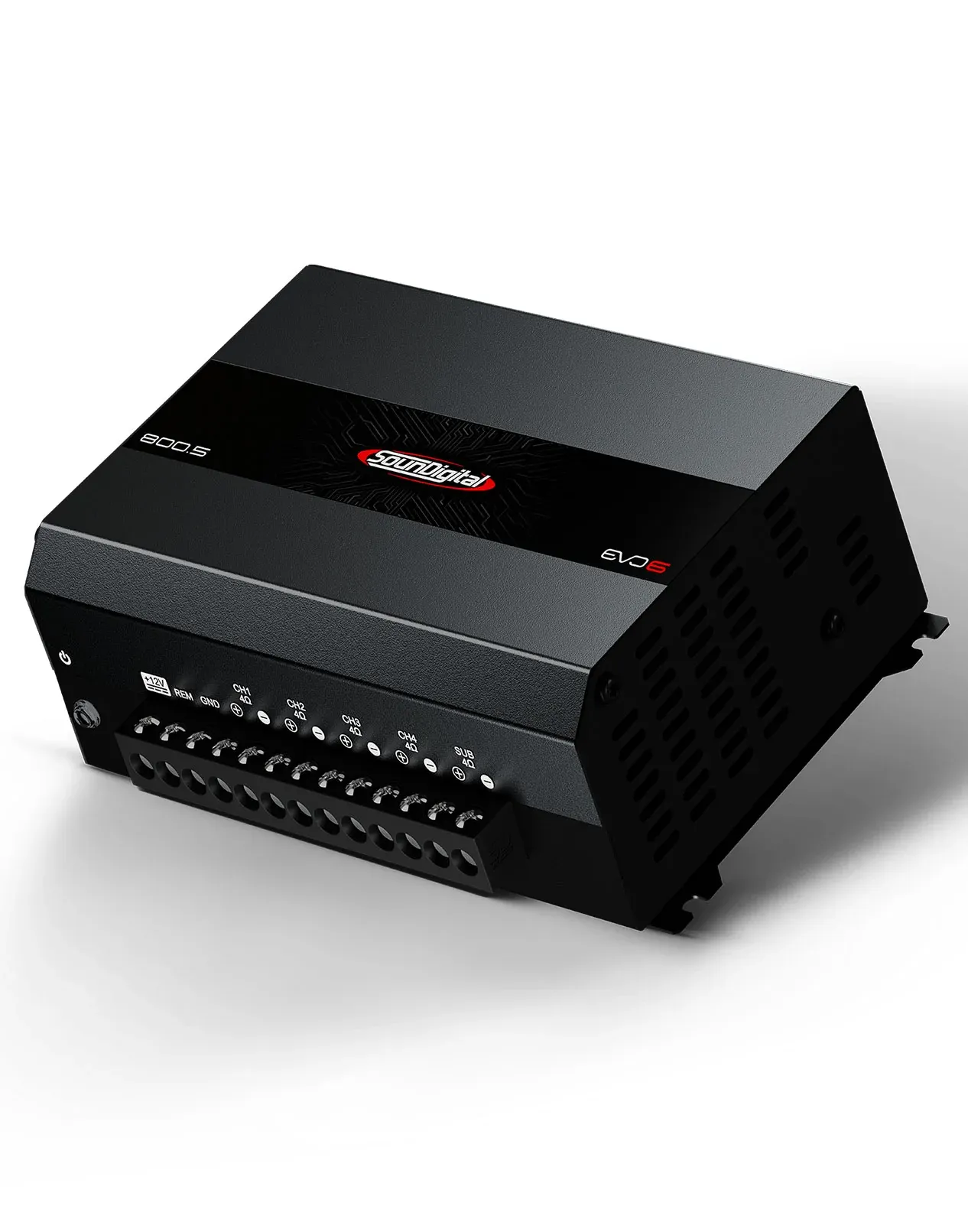

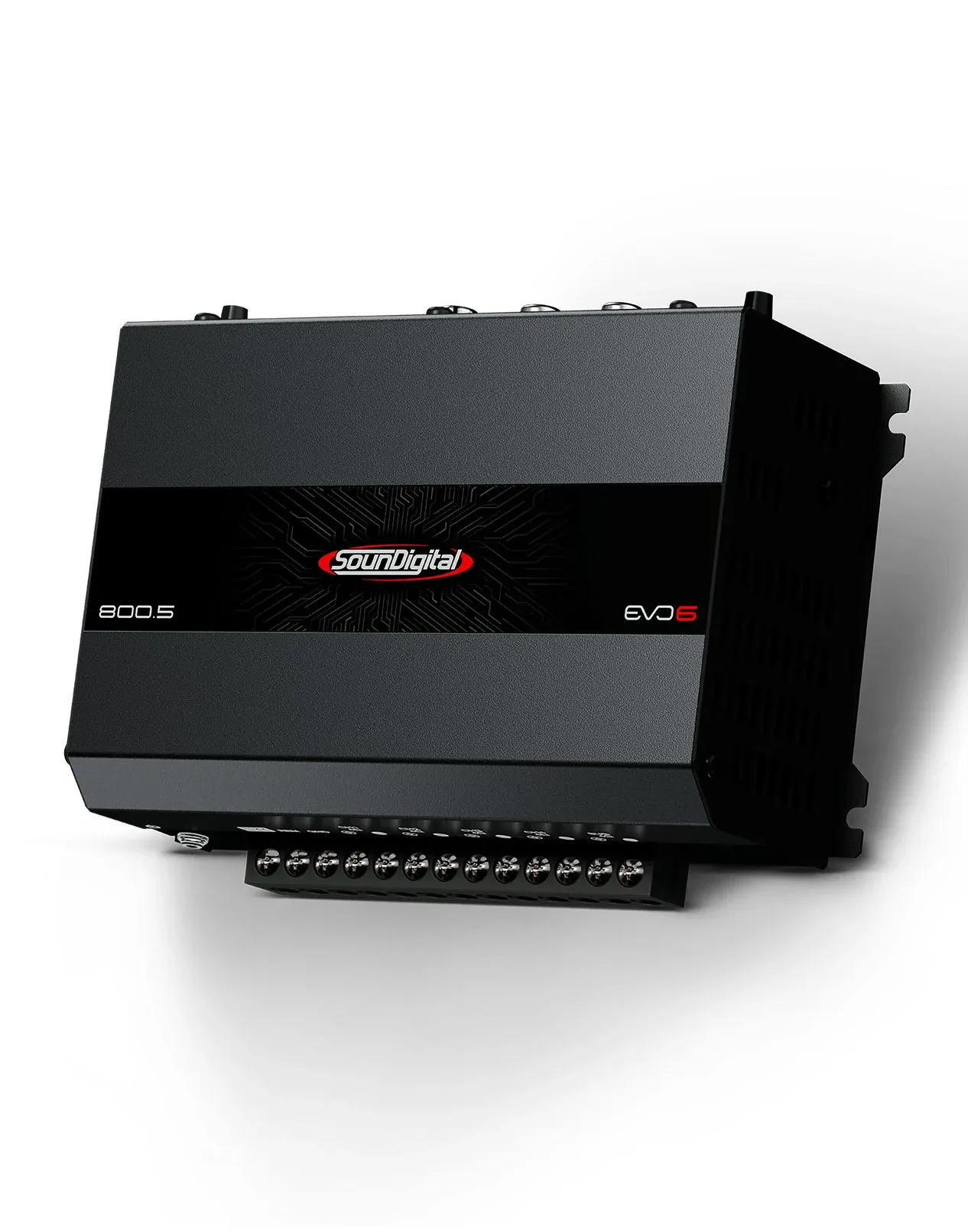

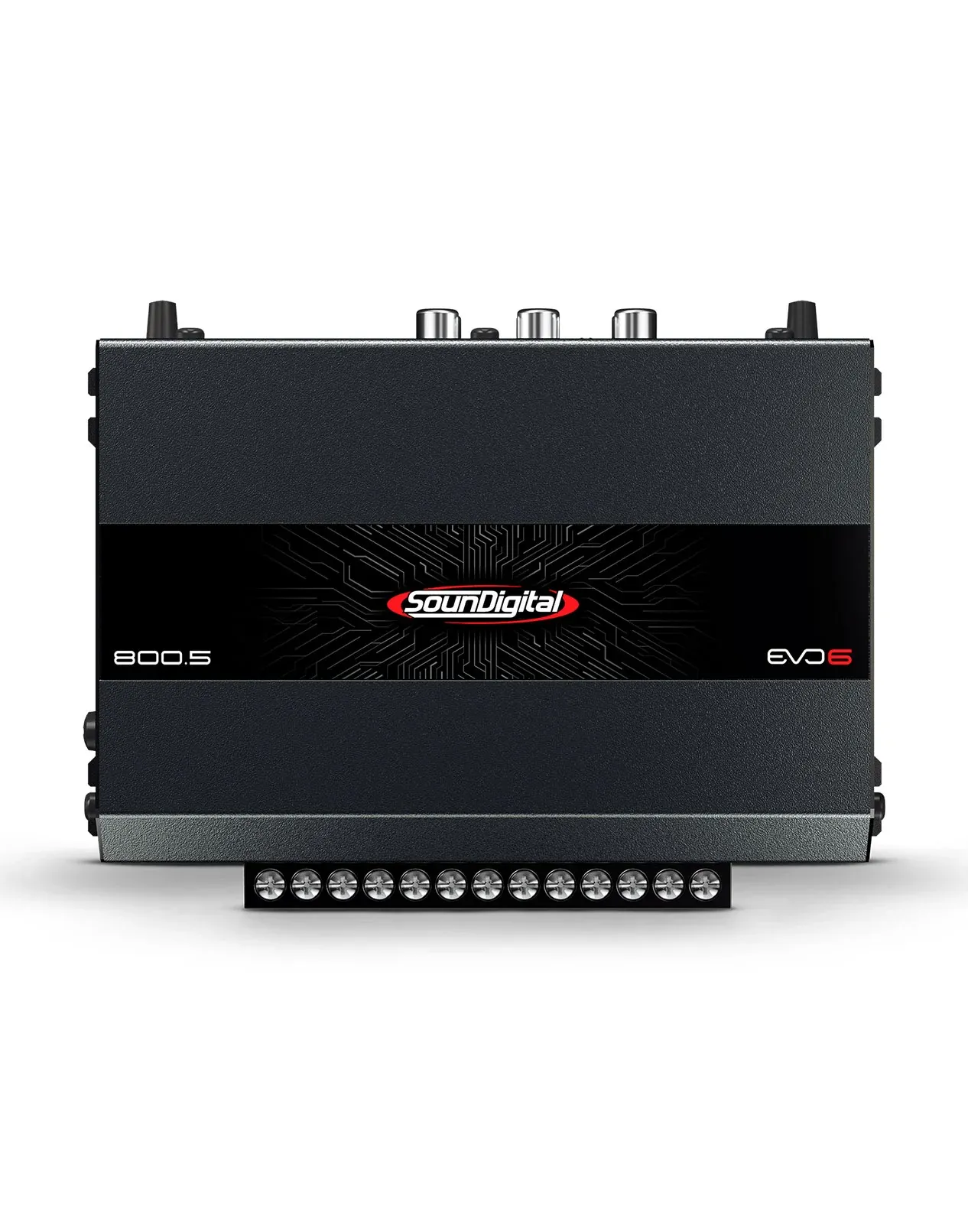

SounDigital EVO6 5CH 800RMS Amplifier

The SounDigital EVO6 5CH 800RMS Amplifier is the perfect solution for those seeking high power and exceptional sound clarity. Delivering 800W RMS over 4 channels, this 5-channel amplifier is engineered for outstanding performance and efficiency. With a wide frequency response (5Hz to 20kHz) and high and low-pass filters, it ensures precise sound tuning for any audio setup.

Key Features:

• Power Output: 4 x 132W RMS @ 4Ω, 4 x 200W RMS @ 2Ω; Bridge Power: 2 x 400W RMS @ 2Ω.
• Frequency Response: 5Hz ~ 20kHz, covering the entire audible range for crisp, clear sound.
• Low Pass & High Pass Filters: 80Hz for precise control of your audio frequencies.
• Compact & Efficient: Compact design with an impressive 80% total efficiency.
• Operating Voltage: 9V to 16V, offering flexibility for different electrical systems.

Specifications:

• Bridge Power @ 4Ω: N/A
• Low Pass Filter (12dB/oct.): 80Hz
• High Pass Filter (12dB/oct.): 80Hz
• SNR: 93dB

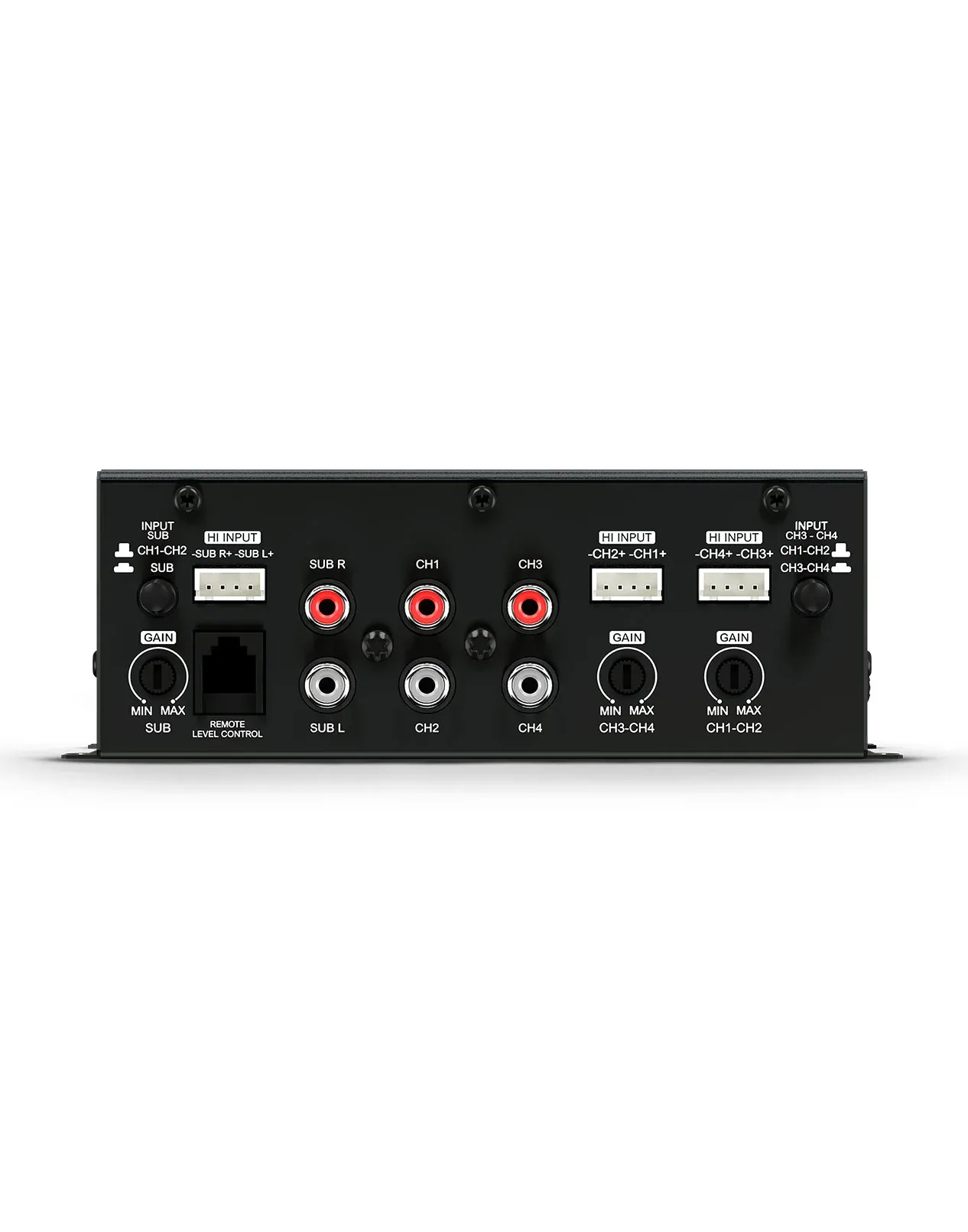

• Input Sensitivity (RCA): 0.2V ~ 2V
• Current Draw (Music): 39A
• Current Draw (Max.): 78.7A
• Damping Factor (@100Hz nominal impedance): 200

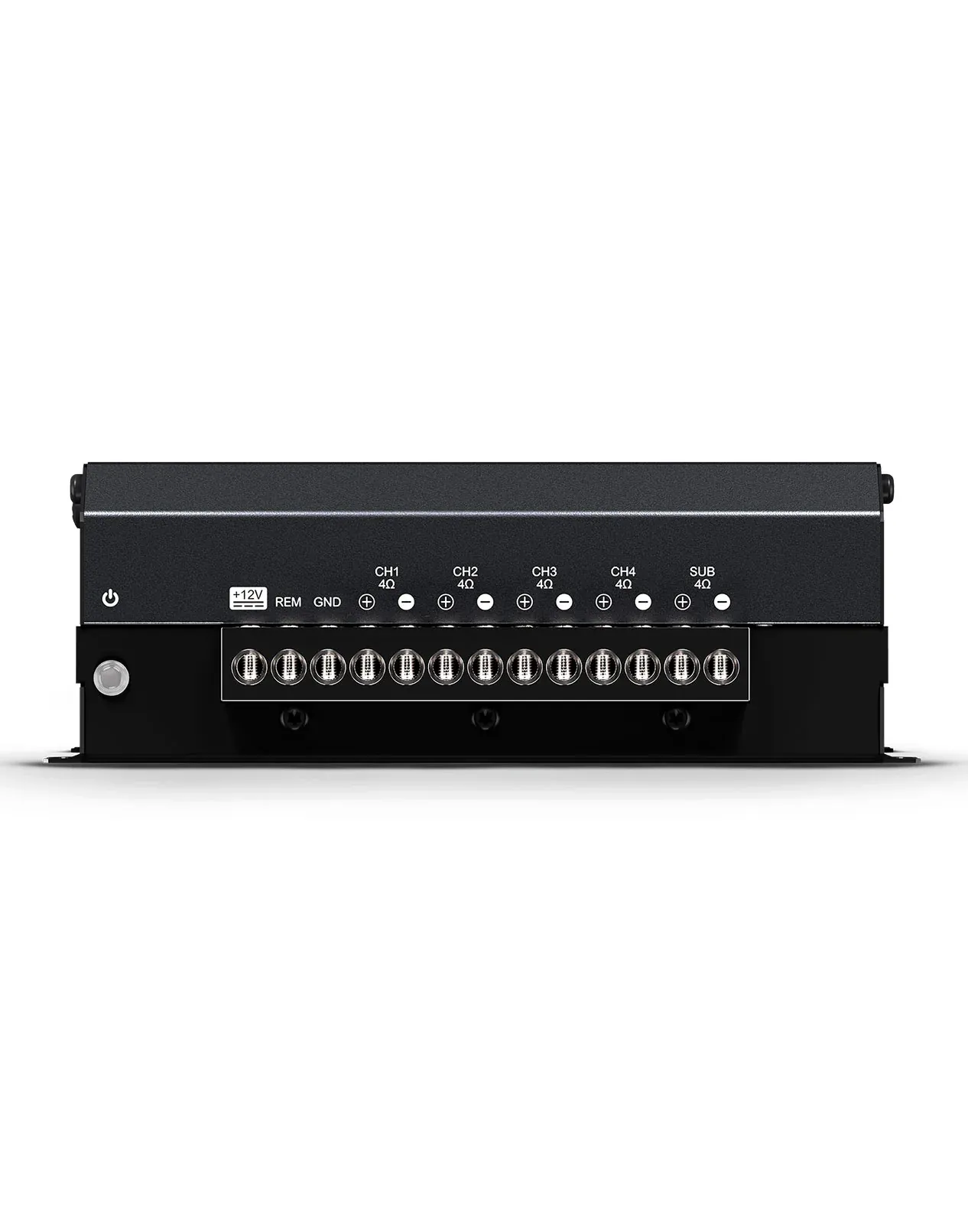

• Power Cable: 10mm² (7 AWG)
• Speaker Cable: 2 x 2.5mm² (13 AWG)
• Recommended Fuse (Music): 40A
• Recommended Battery (Min.): 60Ah

Note: Manufacturers warranty is void if damaged due to failure in installation or power surge. Professional installation is required. For warranty, invoice/certificate from installer is mandatory.
