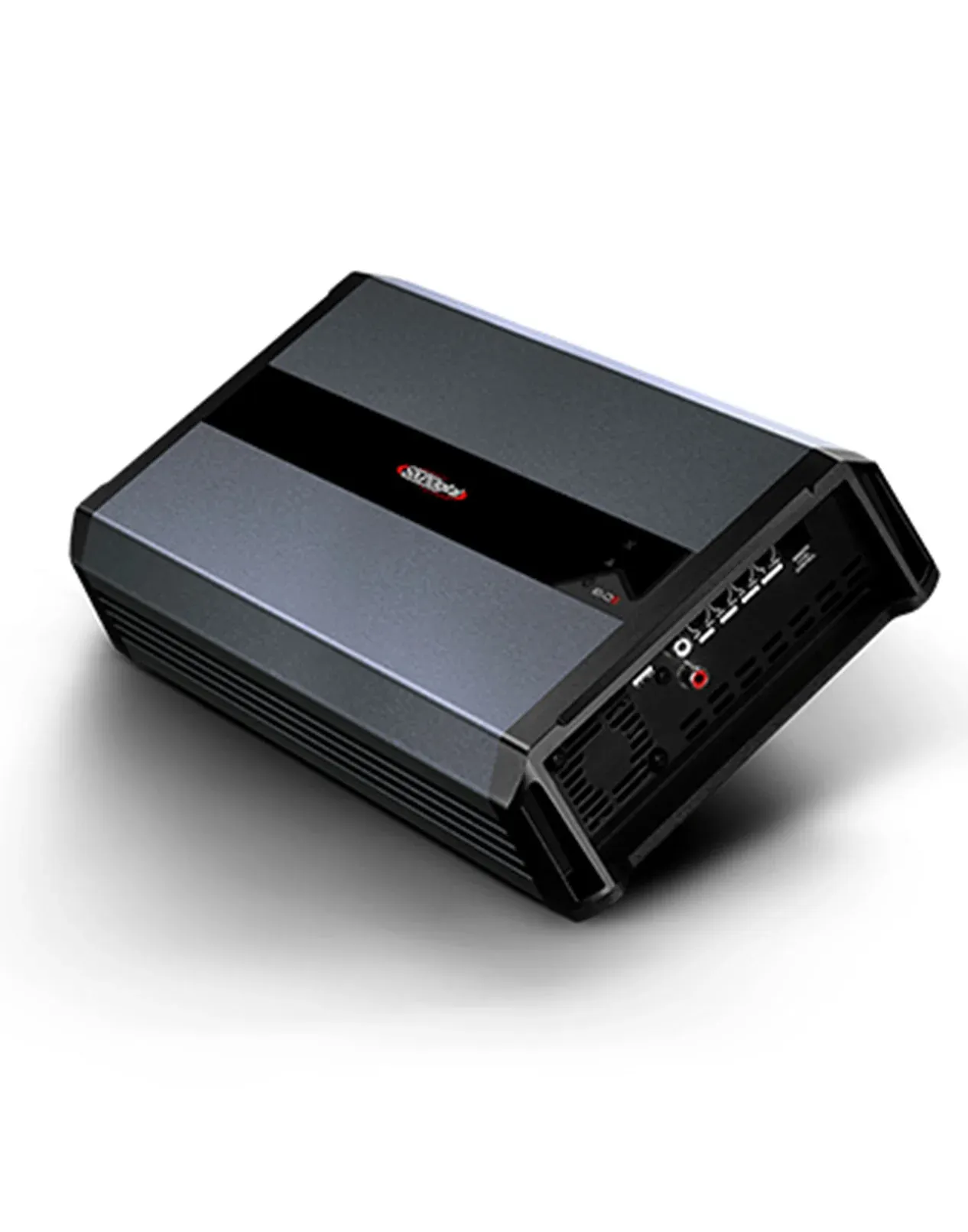

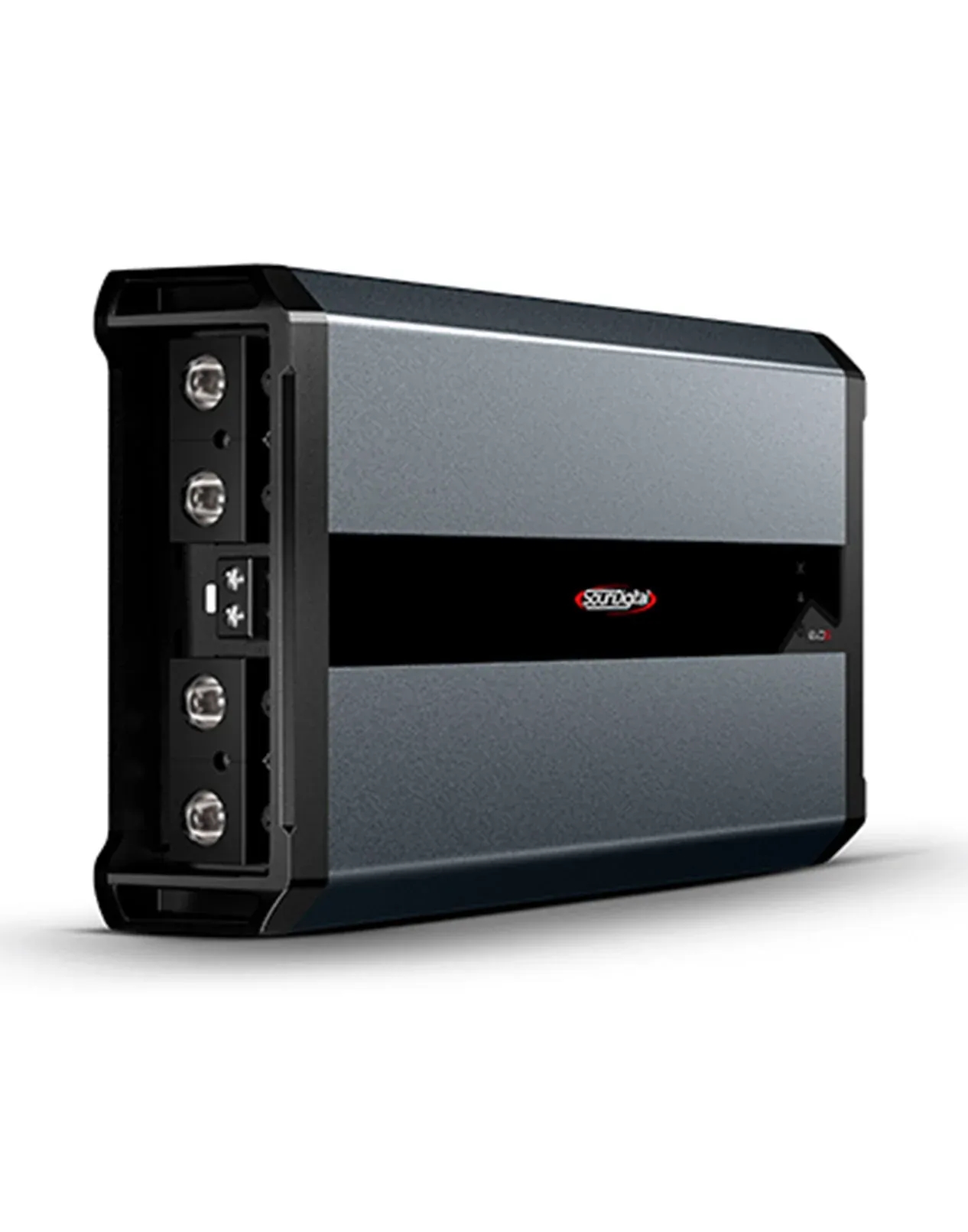

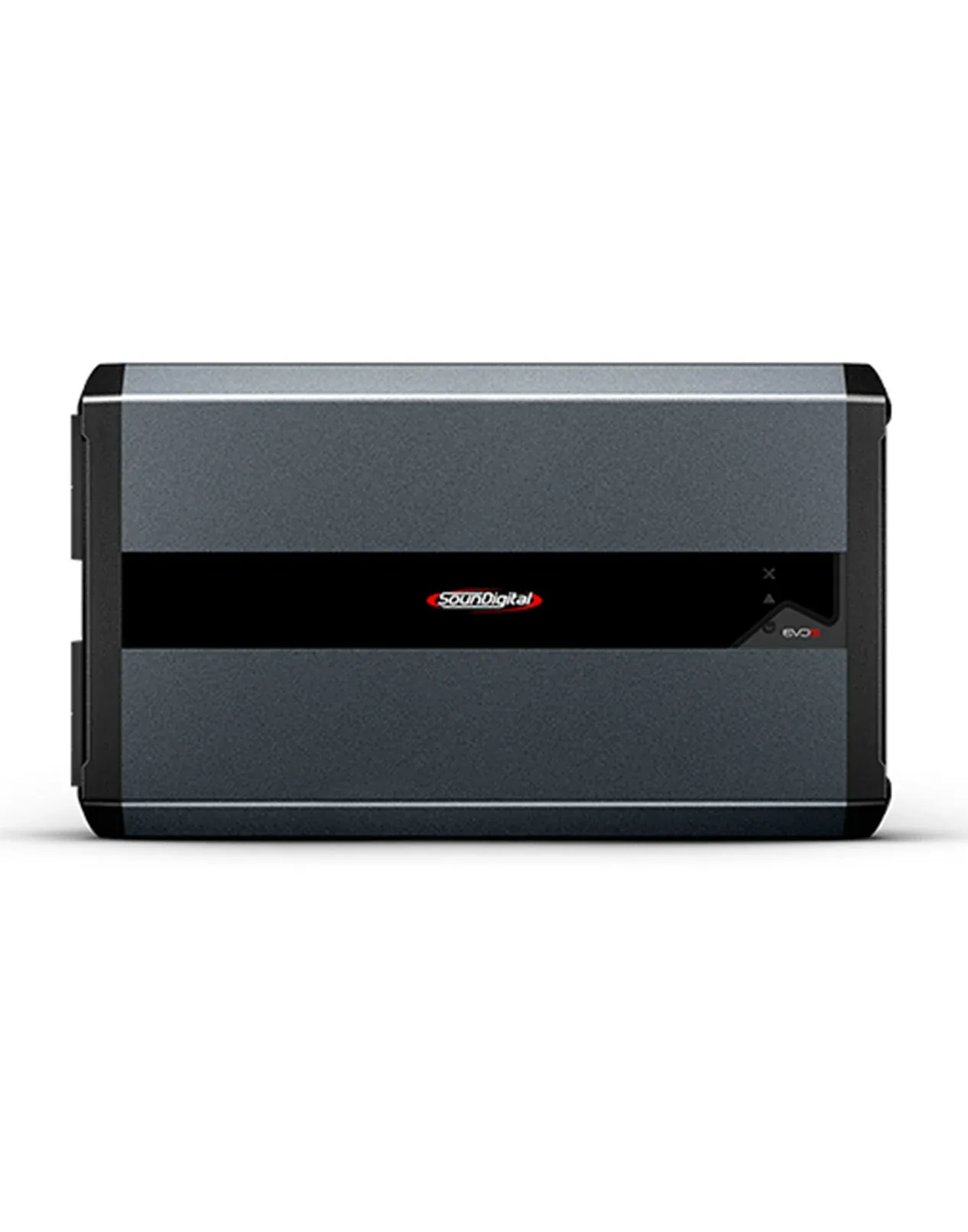

SounDigital EVO5 8000RMS Mono Amplifier With Universal Bass Controller

The SounDigital EVO5 8000RMS Mono Amplifier with Universal Bass Controller delivers unmatched power and precision for high-performance car audio systems. With an incredible output of 8000 watts RMS at 1 ohm, this amplifier is perfect for bass enthusiasts and professionals looking to enhance their sound system.

Key Features:

• Power Output: 8000 watts RMS at 1 ohm, 5360 watts RMS at 2 ohms, 3844 watts RMS at 4 ohms.
• Frequency Response: 8Hz ~ 20kHz, covering deep bass to high-frequency audio.
• Subsonic Filter: 8Hz ~ 80Hz (12dB/oct) for clean, distortion-free bass.
• Low-Pass Filter: 50Hz ~ 20kHz (12dB/oct) for precise tonal control.
• Bass Boost: 0dB ~ 12dB @ 50Hz to enhance low-end frequencies.
• Signal-to-Noise Ratio (SNR): 92dB @ 1 ohm, 85dB @ 2 ohms for cleaner, high-quality audio.
• Input Sensitivity: RCA (0.2V ~ 2V) and High-Level Input (1.3V ~ 15V) for versatility.

Specifications:

• Operating Voltage: 9V ~ 16V
• Current Draw (Music): 381A
• Current Draw (Max.): 762A
• Total Efficiency: 80%
• Damping Factor (@100Hz nominal impedance): 2000
• Power Cable: 70mm² (00 AWG)
• Speaker Cable: 2 x 10mm² (7 AWG)
• Recommended Fuse (Music): 2 x 200A
• Recommended Battery (Minimum): 2 x 220Ah

Note: Manufacturers warranty is void if damaged due to failure in installation or power surge. Professional installation is required. For warranty, invoice/certificate from installer is mandatory.
