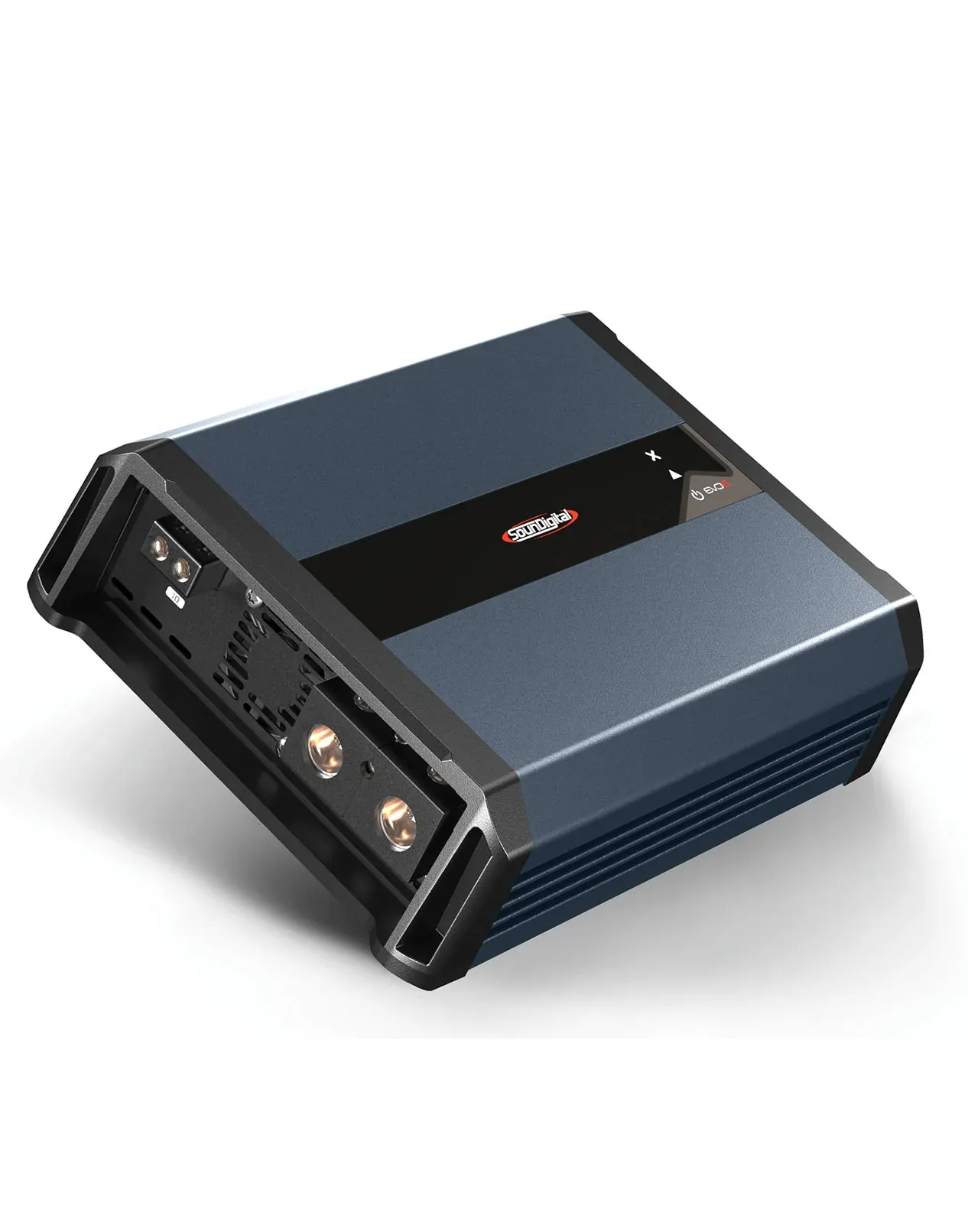

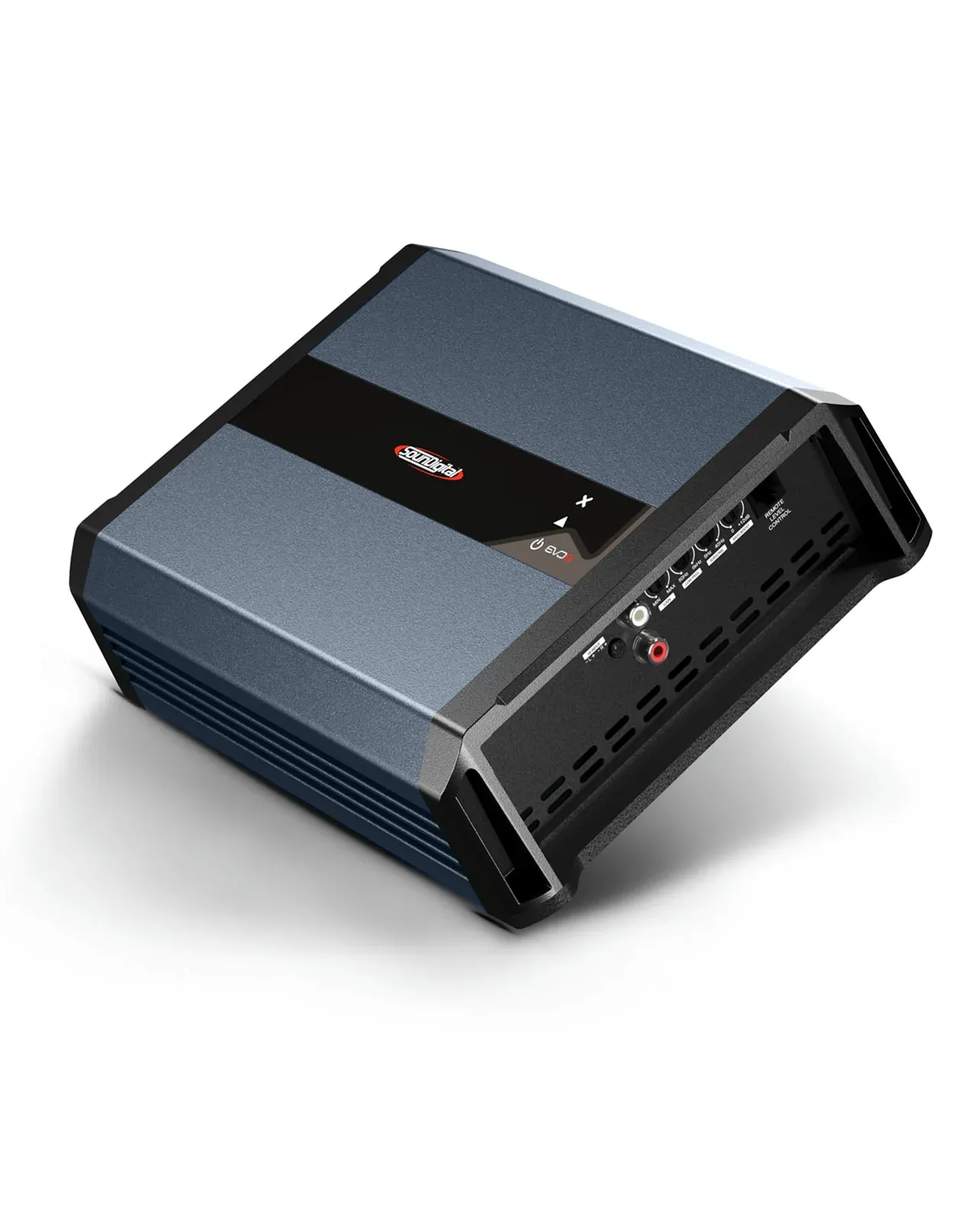

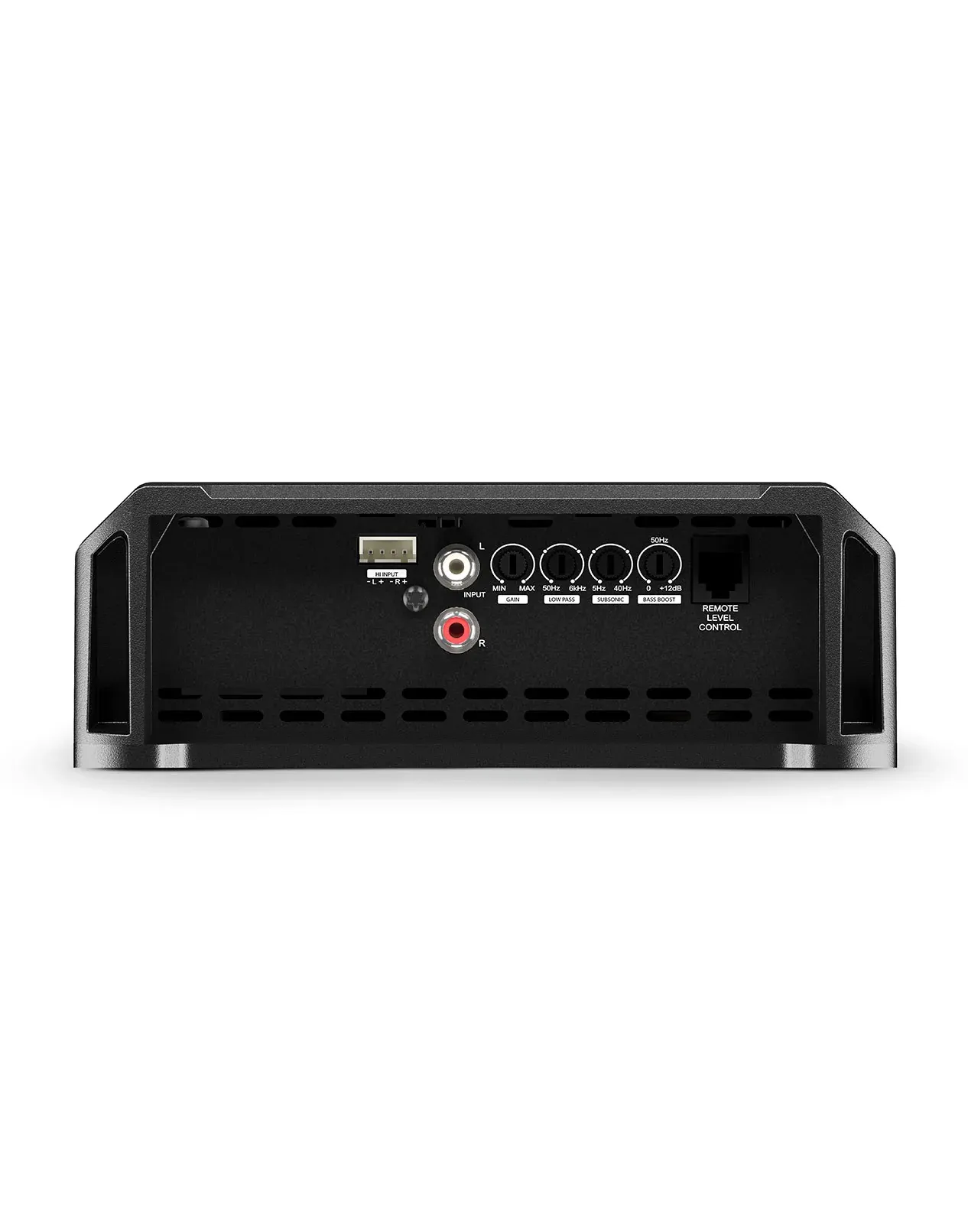

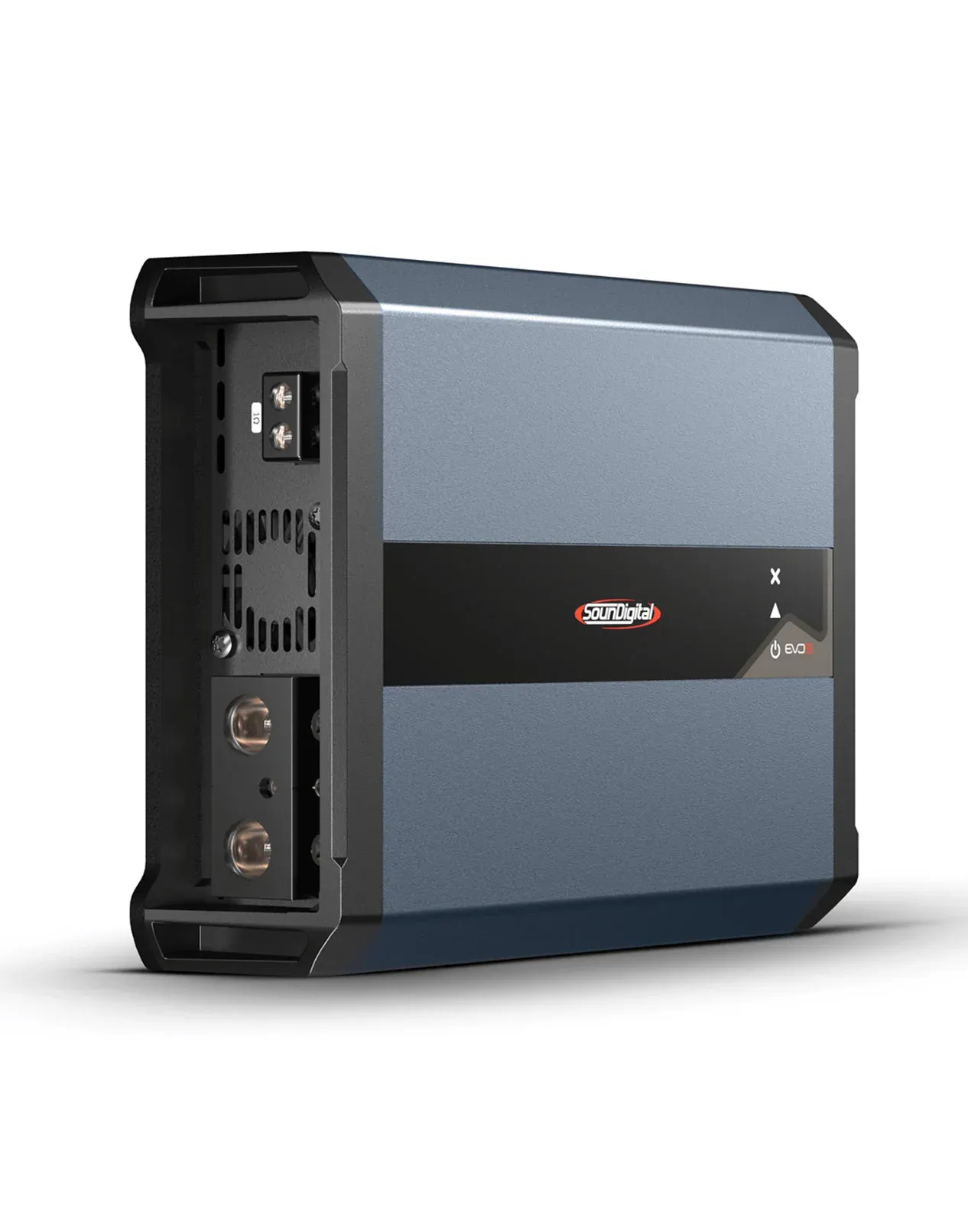

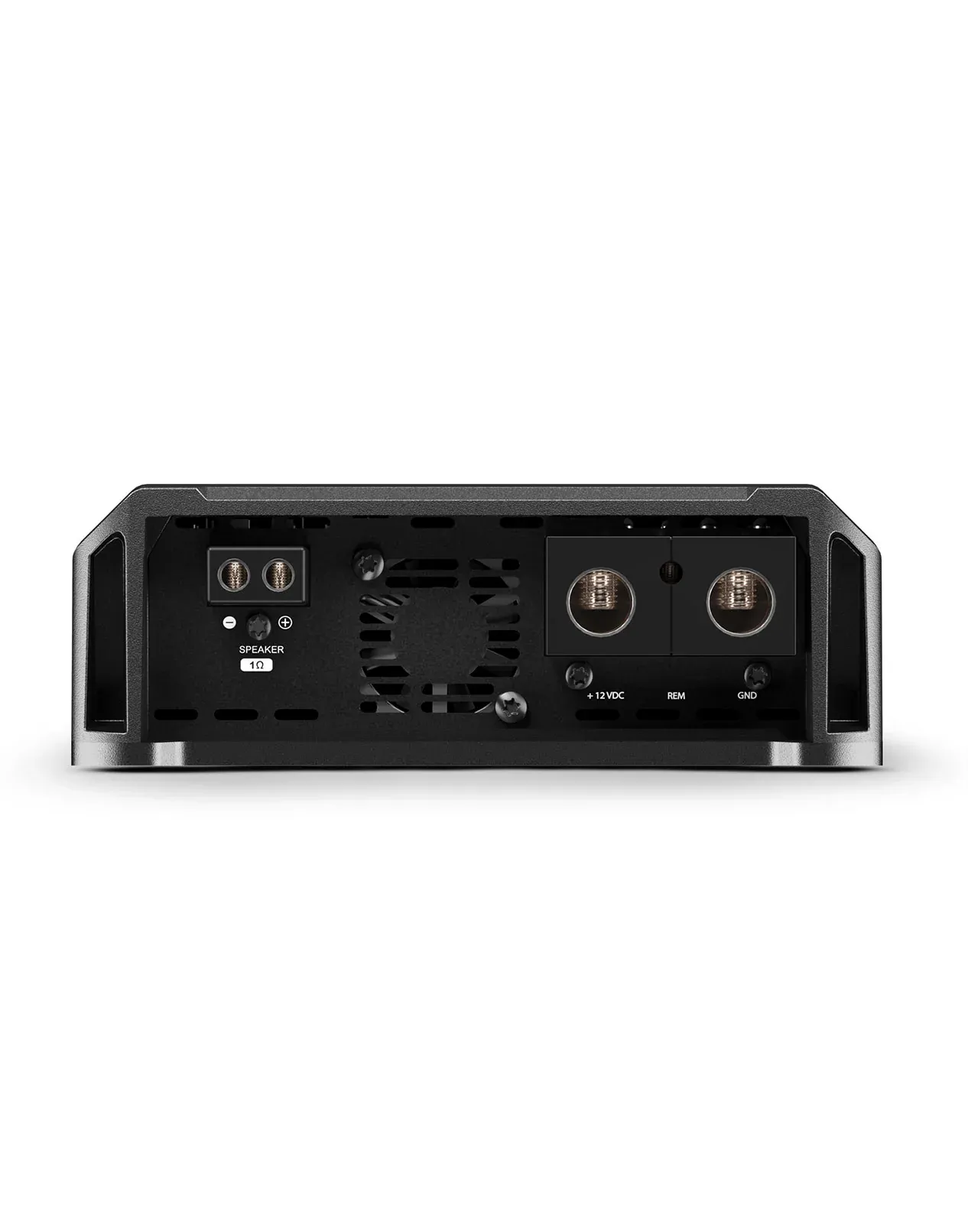

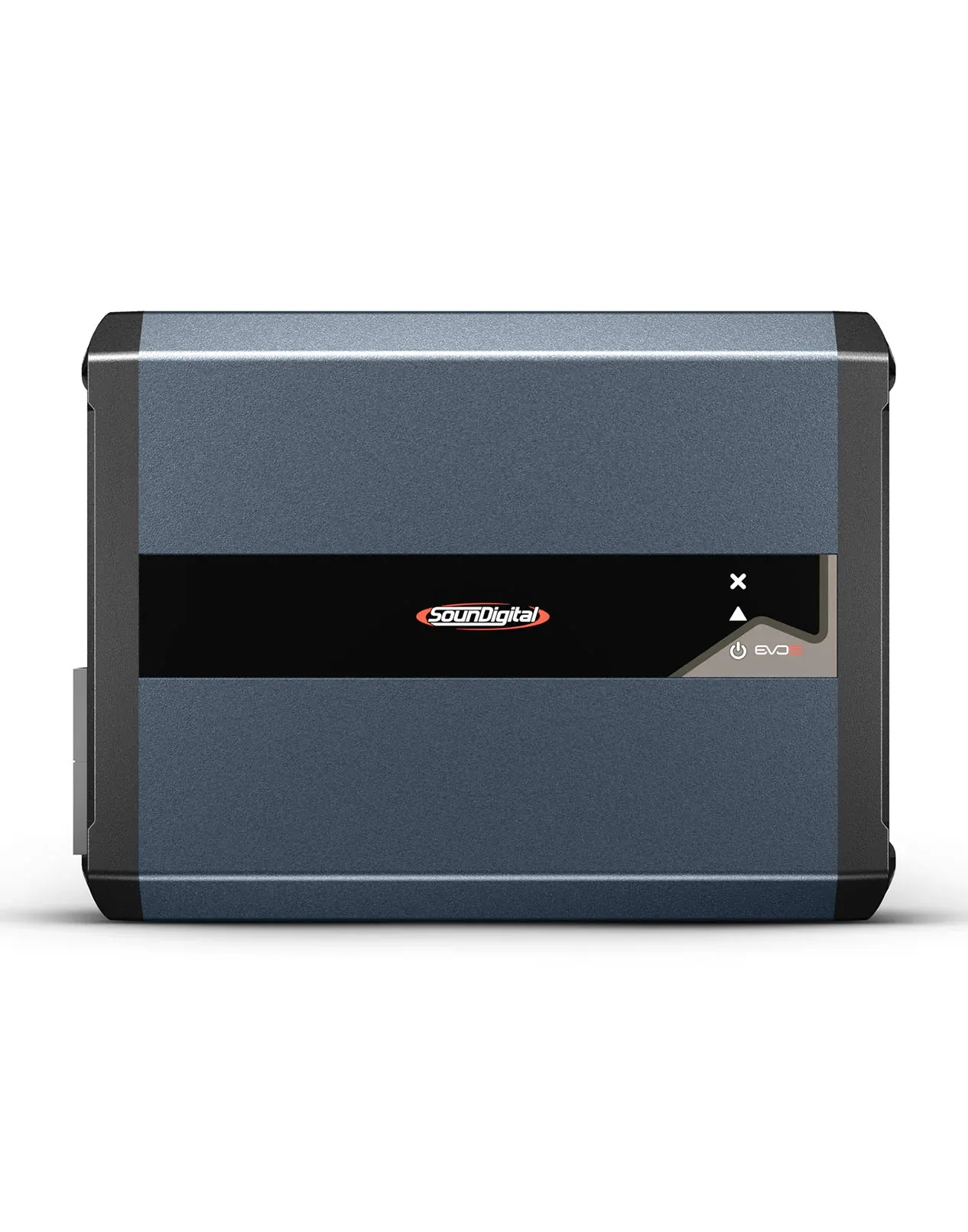

SounDigital EVO5 5000RMS Mono Amplifier With Universal Bass Controller

The SounDigital EVO5 5000RMS Mono Amplifier with Universal Bass Controller is engineered for serious audio enthusiasts looking to elevate their car sound system. With an impressive power output of up to 5000 watts RMS, this 1-channel amplifier is built for exceptional performance, whether at 1 ohm or 2 ohms.

Key Features:

• Power Output: 5000 watts RMS at 1 ohm (5000.1 EVO5 – 1 OHM), 3300 watts RMS at 2 ohms (5000.1 EVO5 – 2 OHM).
• Frequency Response: Wide frequency range of 5Hz to 6kHz, ensuring deep bass and crystal-clear highs.
• Filters: Includes a Low-pass filter (50Hz ~ 6kHz) and Subsonic filter (5Hz ~ 80Hz) for precise sound control.
• Operating Voltage: 8V ~ 16V for reliable power performance.
• Efficiency: 86% overall efficiency, making it highly effective in energy usage.
• Signal-to-Noise Ratio (SNR): 90dB, ensuring clean and clear audio output.
• Input Sensitivity: RCA (0.2V ~ 2V) and High-Level Input (1.2V ~ 12V) for flexible compatibility.

Specifications:

• Power @ 1Ω: 5000 Watts RMS
• Power @ 2Ω: 3300 Watts RMS (5000.1 EVO5 – 1 OHM)
• Power @ 4Ω: 2178 Watts RMS (5000.1 EVO5 – 1 OHM), 3300 Watts RMS (5000.1 EVO5 – 2 OHM)
• Subsonic Filter (12dB/oct.): 5Hz ~ 80Hz
• Current Consumption (Music): 230A
• Current Consumption (Max.): 461A
• Damping Factor (@100Hz nominal impedance): >2000
• Power Cable: 50mm²
• Speaker Cable: 2 x 10mm²
• Recommended Fuse (Music): 250A

Note: Manufacturers warranty is void if damaged due to failure in installation or power surge. Professional installation is required. For warranty, invoice/certificate from installer is mandatory.
